3.5

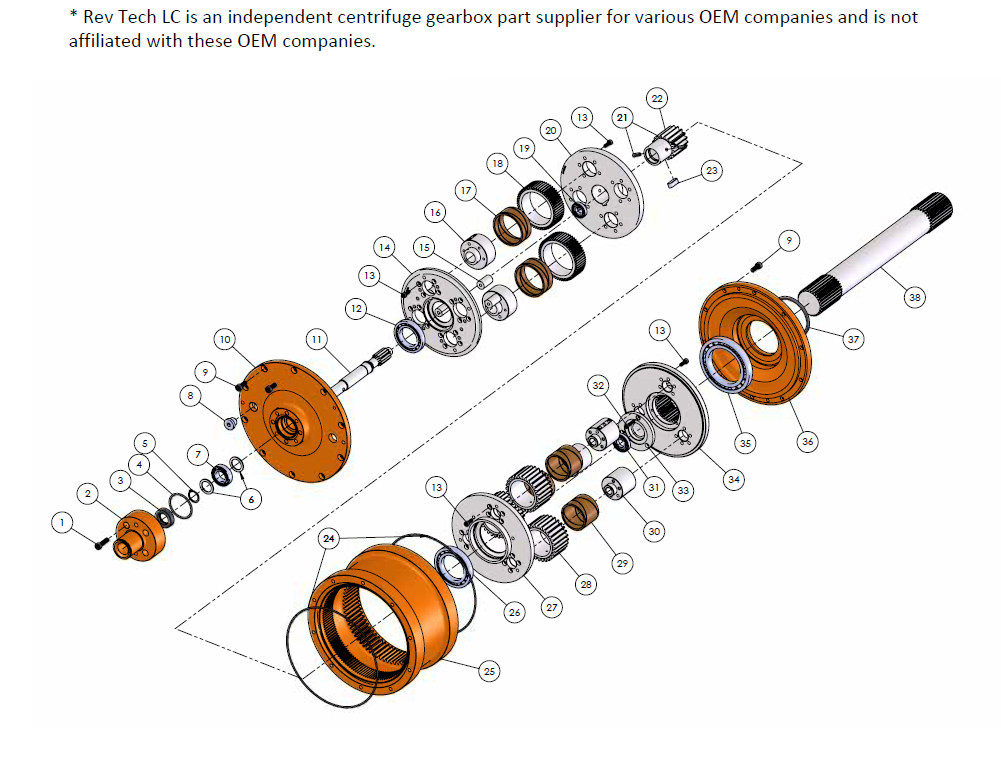

Typical Machine: 414, 418, 518

ITEM#
PART#
 DESCRIPTION
QTY
ITEM#
PART#
 DESCRIPTION
QTY
1
160100
 SHCS 8-1.25 X 30MM
4
19
161900
 1ST STAGE AXLE
2
2
160200
 SEAL RETAINER (GS COUPLING)
1
19-A
161901
 1ST STAGE CAGE SUPPORT
4
3
160300
 OIL SEAL 25 X 42 X 7 DOUBLE LIP
1

20
162000
 BEARING 16003
1
4
160400
 SNAP RING 3100-98
1

21
162100
 1ST STG COVER W/2ND STG PINION
1
5
160501A
 BEARING 6005
1

21-A
162101
 2ND STAGE PINION
1
6
160501
 SPACER
2

21-B
162102
 1ST STAGE COVER
1
7
160600
 1ST STAGE PINION (GS COUPLING)
1

22
162300
 DOWEL PIN 6 X 30MM
2
8
160800
 OUTSIDE COVER
1

23
162400
 RING GEAR HOUSING
1
9
160900
 OIL PLUG (METRIC)
2

24
162500
 BEARING 16012
1
9-A
160901
 OIL PLUG (ALT. STD. PIPE PLUG)
2

25
162600
 2ND STAGE HOUSING
1
9-B
161000
 WASHER
2

26
162800
 2ND STAGE PLANET GEAR
3
10
160700
 O'RING 3 X 54 H70
1

27-A
162900
 2ND STAGE BRONZE BEARING
3
11
161100
 SHCS 8-1.25 X 20MM
20

28
163000
 2ND STAGE AXLE
3
12
161200
 SET SCREWS 8-1.25 X 12MM
1

29
163100
 BEARING 16004
1
13
161300
 O'RING 5.7 X 239.3 H70
2

30
163200
 2ND STAGE COVER W/SPLINE
1
14
161400
 BEARING 16009
1

30-A
163202
 SPLINE PLUG
1
15
161500
 1ST STAGE HOUSING
1

31
163500
 BEARING 16017
1
16
161600
 SHCS 6-1.0 X 16MM
56

32
163600
 O'RING 6 X 85 H70
1
17
161700
 1ST STAGE PLANET GEAR
2

33
163800
 INSIDE COVER
1
18
161800
 BRONZE BEARING
2

34
164100
 DRIVE SHAFT
1
